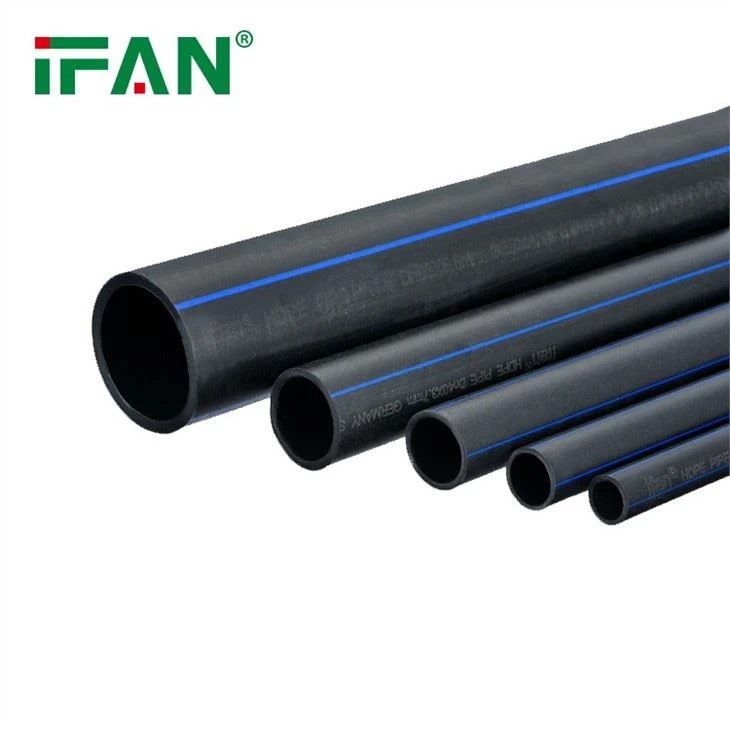

Specifications ntawm PE yeeb nkab

PE dej muab cov yeeb nkab, uas yog, polyethylene dej muab cov yeeb nkab, muaj qhov zoo ntawm cov khoom siv tshuaj ruaj khov, kev hloov pauv dav rau qhov kub thiab txias, thiab lub neej ua haujlwm ntev. Nws yog cov khoom siv yeeb nkab nrov heev tam sim no, thiab muaj ntau qhov tshwj xeeb ntawm PE cov yeeb nkab dej. Qhov no yuav qhia kom meej.

1. Raws li txoj kab uas hla ntawm PE dej muab cov yeeb nkab, uas yog, sab nraud txoj kab uas hla, tus qauv tuaj yeem muab faib ua: 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 125mm, 160mm, 180 mm, 200 mm, 225 mm, 250 mm, 280 mm, 280 mm, 315 mm, 355 mm, 400 mm, 450 mm, 500 mm, 560 mm, 630 mm, 710 mm, 800 mm, 900 mm, 10120 mm. thiab lwm yam, tag nrho hauv millimeter.

2. Qhov nruab nrab sab nraud ntawm PE cov kav dej yuav tsum sib haum rau qhov tshwj xeeb nominal sab nraud txoj kab uas hla. Piv txwv li, rau DN20 PE cov kav dej, qhov nruab nrab qhov nruab nrab sab nraud yuav tsum yog 20.{{10}}mm, thiab qhov siab tshaj plaws qhov nruab nrab sab nraud yuav tsum yog 20.3 mm; rau DN25 PE cov kav dej, qhov nruab nrab qhov nruab nrab sab nraud yuav tsum yog 20.0mm. Sab nraud txoj kab uas hla yuav tsum yog 25.0 hli, qhov siab tshaj plaws qhov nruab nrab sab nraud yuav tsum yog 25.3 hli, thiab lwm yam. Rau PE cov kav dej uas muaj me me nominal txheej diameters, qhov siab tshaj plaws thiab qhov nruab nrab qhov sib txawv nruab nrab feem ntau yog tswj tsis pub dhau 0.3 hli, thaum rau PE dej. muab cov kav dej uas loj dua nominal sab nraud diameters, qhov siab tshaj plaws thiab qhov tsawg kawg nkaus qhov nruab nrab qhov sib txawv ntawm qhov sib txawv yog qhov loj dua. .

3. Lub nominal sab nraud txoj kab uas hla ntawm PE dej muab yeeb nkab coil feem ntau yog qis dua DN63mm, thiab nws expansion ntev yog sib tham los ntawm ob tog; thaum lub PE dej muab cov yeeb nkab nrog lub nominal txheej kab saum toj no DN75mm feem ntau yog cov yeeb nkab ncaj, thiab nws qhov ntev yog feem ntau 6m, 9m, 12m, thiab lwm yam.

4. Cov qib siab tshwj xeeb ntawm cov kav dej PE yog: 1.6MPA, 1.25MPA, 1.0MPA, 0.8MPA, 0.6MPA, thiab lwm yam. Cov specifications thiab phab ntsa thicknesses sib haum rau PE cov kav dej uas muaj cov qib siab sib txawv kuj txawv. Feem ntau hais lus, lub siab lawv dais Qhov loj dua qhov sib thooj specification, lub thickness ntawm phab ntsa. Piv txwv li, phab ntsa tuab ntawm PE dej xa dej yeeb nkab ntawm DN50 yog 2.00 hli nyob rau hauv qhov siab ntawm 0.6MPA, thiab cov phab ntsa thickness yog 4.60 hli nyob rau hauv lub siab ntawm 1.25MPA. .
